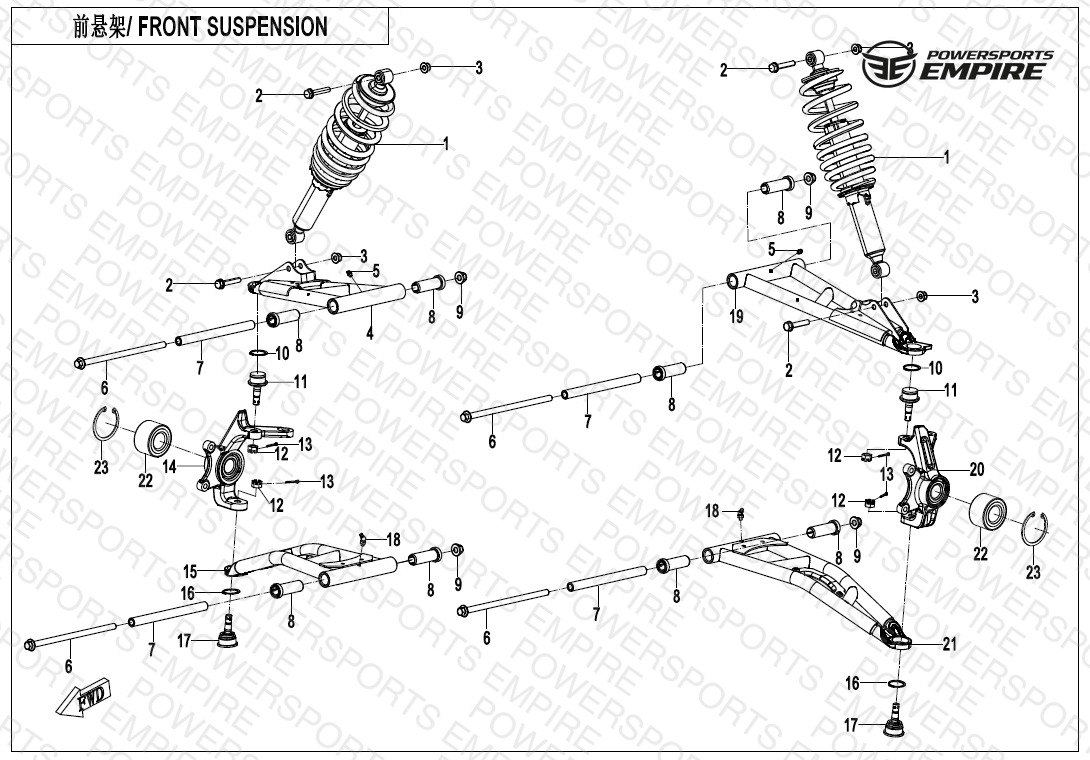

F05 — FRONT SUSPENSION
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5KWV-050500-1000 FRONT SHOCK ABSORBER | FRONT SHOCK ABSORBER | 1 | $252.99 | Available to order | 1 |
| 02 | 30006-102055110 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 03 | 30204-102110 NUT M10 | NUT M10 | 6 | — | Obsolete | View Details |
| 04 | 5KWV-050310-1000-0BP00 FRONT UPPER RH SWING ARMÂ | FRONT UPPER RH SWING ARMÂ MAUD SPIRIT BLACK | 1 | $114.99 | Available to order | 1 |
| 05 | 3120100 GREASE ZERK | GREASE ZERK | 2 | $3.44 | Available to order | 2 |
| 06 | 5SYV-050103-6000 SHAFT, SWNG ARM | SHAFT, SWNG ARM | 1 | $14.94 | Out of Stock | Notify Me |
| 07 | 5SYV-050101-6000 MIDDLE SPACER, SWING ARM | MIDDLE SPACER, SWING ARM | 1 | $14.94 | Available to order | 1 |
| 08 | 5BY0-050102 FRONT UPPER A ARM BUSHING | FRONT UPPER A ARM BUSHING | 2 | $6.89 | Available to order | 2 |
| 09 | 30204-122910 NUT | NUT M12x1.25 | 6 | $1.25 | Available to order | 6 |
| 10 | 30801-03205 RETAINER 32 | RETAINER 32 32 A-TYPE | 6 | $1.25 | Available to order | 6 |
| 11 | 9030-050600-10000 BALL PIN COMP. | BALL PIN COMP. | 1 | $57.49 | Available to order | 1 |
| 12 | 30219-122810 NUT M12x1.25 | NUT M12x1.25 M12x1.25 | 6 | $2.29 | Available to order | 6 |
| 13 | 30903-0322210 COTTER PIN | COTTER PIN | 6 | $1.25 | Available to order | 6 |
| 14 | 5KWV-050801-1000 RH STEERING KNUCKLE | RH STEERING KNUCKLE | 1 | $142.99 | Available to order | 1 |
| 15 | 5KWV-050410-1000-0BP00 FRONT LOWER RH SWING ARM | FRONT LOWER RH SWING ARM MAUD SPIRIT BLACK | 1 | $91.99 | Available to order | 1 |
| 16 | 30801-03405 RETAINER 34 | RETAINER 34 34 | 6 | $1.25 | Available to order | 6 |
| 17 | 9060-050900-10000 BALL PIN COMP. | BALL PIN COMP. | 1 | $45.99 | Available to order | 1 |
| 18 | 3121401 GREASE ZERK M6 | GREASE ZERK M6 45 DEGREE | 1 | $3.44 | Available to order | 1 |
| 19 | 5KWV-050110-1000-0BP00 FRONT UPPER LH SWING ARM | FRONT UPPER LH SWING ARM MAUD SPIRIT BLACK | 1 | $114.99 | Available to order | 1 |
| 20 | 5KWV-050701-1000 LH STEERING KNUCKLE | LH STEERING KNUCKLE | 1 | $142.99 | Available to order | 1 |
| 21 | 5KWV-050210-1000-0BP00 FRONT LOWER LH SWING ARMÂ | FRONT LOWER LH SWING ARMÂ MAUD SPIRIT BLACK | 1 | $91.99 | Available to order | 1 |
| 22 | 30411-03081 HUB BEARING | HUB BEARING | 1 | $57.49 | Available to order | 1 |
| 23 | 30800-06005 CIRCLIP | CIRCLIP 60 | 6 | $5.74 | Available to order | 6 |
