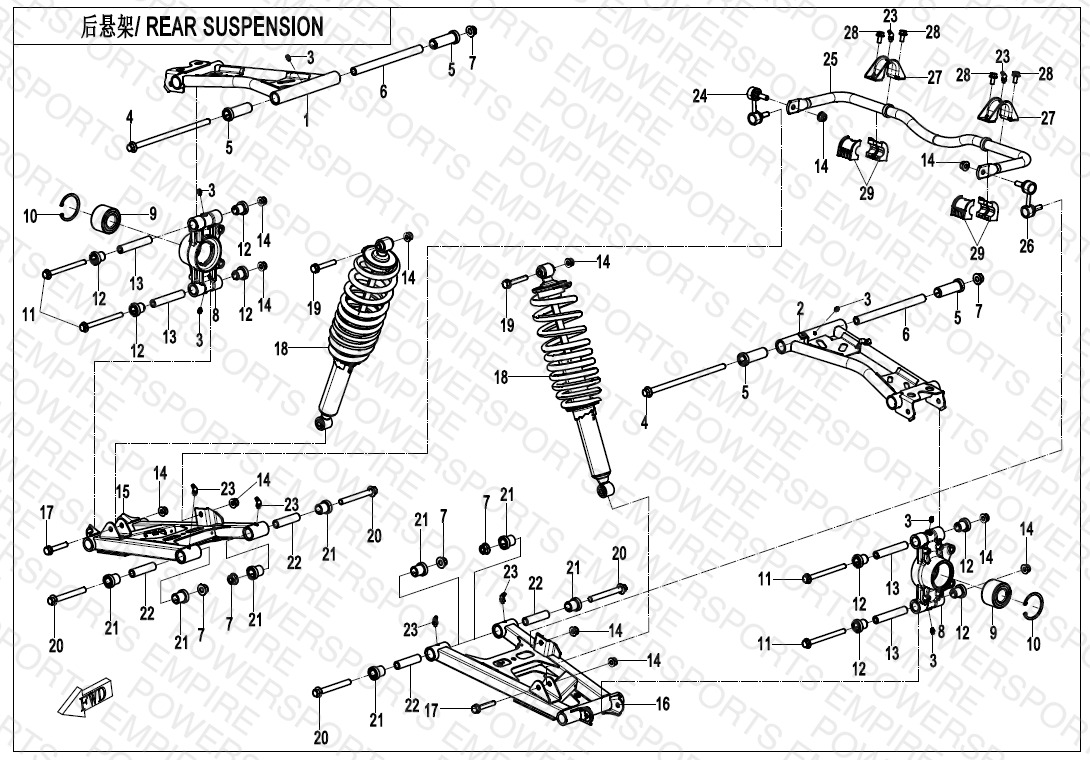

F06 — REAR SUSPENSION
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5SYV-060310-6001-0BP00 REAR RH UPPER SWING ARM | REAR RH UPPER SWING ARM MAUD SPIRIT BLACK | 1 | $131.99 | Available to order | 1 |
| 02 | 5SYV-060110-6001-0BP00 REAR LH UPPER SWING ARM | REAR LH UPPER SWING ARM MAUD SPIRIT BLACK | 1 | $120.99 | Available to order | 1 |
| 03 | 3120100 GREASE ZERK | GREASE ZERK | 2 | $3.44 | Available to order | 2 |
| 04 | 5SYV-050103-6000 SHAFT, SWNG ARM | SHAFT, SWNG ARM | 1 | $14.94 | Out of Stock | Notify Me |
| 05 | 5BY0-050102 FRONT UPPER A ARM BUSHING | FRONT UPPER A ARM BUSHING | 2 | $6.89 | Available to order | 2 |
| 06 | 5SYV-050101-6000 MIDDLE SPACER, SWING ARM | MIDDLE SPACER, SWING ARM | 1 | $14.94 | Available to order | 1 |
| 07 | 30204-122910 NUT | NUT M12x1.25 | 6 | $1.25 | Available to order | 6 |
| 08 | 5HY0-060703 BRACKET, REAR WHEEL SHAFT | BRACKET, REAR WHEEL SHAFT | 1 | $131.99 | Available to order | 1 |
| 09 | 30411-03081 HUB BEARING | HUB BEARING | 1 | $57.49 | Available to order | 1 |
| 10 | 30800-06005 CIRCLIP | CIRCLIP 60 | 6 | $5.74 | Available to order | 6 |
| 11 | 30001-102120110 BOLT | BOLT M10x1.25x120 | 6 | — | Obsolete | View Details |
| 12 | 5ASV-050002-6001 SHORT BUSHING | SHORT BUSHING | 2 | $8.04 | Available to order | 2 |
| 13 | 5HY0-060701-00001 MIDDLE SPACER, REAR BEARING CARRIER | MIDDLE SPACER, REAR BEARING CARRIER | 1 | $8.04 | Available to order | 1 |
| 14 | 30204-102110 NUT M10 | NUT M10 | 6 | — | Obsolete | View Details |
| 15 | 5SYV-060410-6002-0BP00 REAR LOWER RH SWING ARM | REAR LOWER RH SWING ARM MAUD SPIRIT BLACK | 1 | $156.19 | Available to order | 1 |
| 16 | 5SYV-060210-6002-0BP00 REAR LOWER LH SWING ARM | REAR LOWER LH SWING ARM MAUD SPIRIT BLACK | 1 | $153.99 | Available to order | 1 |
| 17 | 30006-102055110 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 18 | 5KWV-060500-1000 REAR SHOCK ABSORBER | REAR SHOCK ABSORBER | 1 | $296.99 | Out of Stock | Notify Me |
| 19 | 30006-102060110 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 20 | 30024-122100110 BOLT | BOLT | 6 | $4.59 | Available to order | 6 |
| 21 | 5SYV-060202-6000 SHORT BUSHING, SWING ARM | SHORT BUSHING, SWING ARM | 1 | $10.34 | Available to order | 1 |
| 22 | 5SYV-060201-6000 SHORT MIDDLE SPACER, SWING ARM | SHORT MIDDLE SPACER, SWING ARM | 1 | $10.34 | Available to order | 1 |
| 23 | 3121401 GREASE ZERK M6 | GREASE ZERK M6 45 DEGREE | 1 | $3.44 | Available to order | 1 |
| 24 | 9010-060800-20000 SWAY BAR LINK (RH) | SWAY BAR LINK (RH) | 1 | $57.49 | Available to order | 1 |
| 25 | 5KWV-060610-1000 REAR SWAY BARÂ | REAR SWAY BARÂ | 1 | $57.49 | Out of Stock | Notify Me |
| 26 | 9010-060700-20000 SWAY BAR LINK (LH) | SWAY BAR LINK (LH) | 1 | $57.49 | Available to order | 1 |
| 27 | 9AWV-060610-8000 SWAY BAR PRESS COVER | SWAY BAR PRESS COVER | 1 | $6.89 | Out of Stock | Notify Me |
| 28 | 30006-080016810 BOLT M8X16 | BOLT M8X16 | 6 | $1.25 | Available to order | 6 |
| 29 | 7000-060003 SWAY BAR BUSHING | SWAY BAR BUSHING | 1 | $9.19 | Available to order | 1 |
