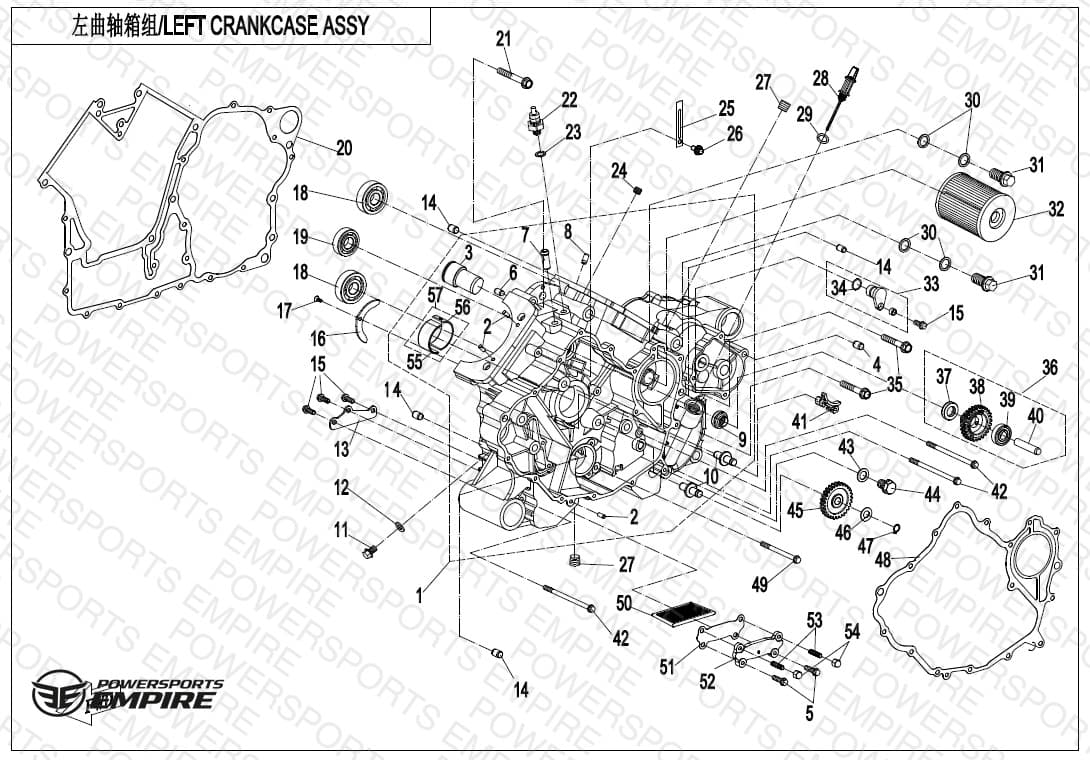

E01-1 — LEFT CRANKCASE ASSY
Parts (60)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 0JWA-0111A1 LH CRANKCASE ASSY | LH CRANKCASE ASSY | 1 | $879.99 | Out of Stock | Notify Me |
| 02 | 30406-00500 ROLLER PIN P 5x11.8 | ROLLER PIN P 5x11.8 P5x11.8 | 6 | $1.25 | Available to order | 6 |
| 03 | 0JWA-060001-10000 GEARSHAFT, REVERSE | GEARSHAFT, REVERSE | 1 | $11.49 | Available to order | 1 |
| 04 | 0010-080008 PIN, DOWELf8x14 | PIN, DOWELf8x14 8X14 | 6 | $1.25 | Obsolete | View Details |
| 05 | 0010-080013-0010 BOLT M6x22 | BOLT M6x22 M6x22 | 6 | $1.25 | Available to order | 6 |
| 06 | 0700-022018 PIN, DOWEL8x14 | PIN, DOWEL8x14 8x14 | 1 | $1.25 | Available to order | 1 |
| 07 | 0010-013006-0010 JOINT, BREATHER HOSE | JOINT, BREATHER HOSE | 1 | $3.44 | Available to order | 1 |
| 08 | 0800-011400-00001 NOZZLE VALVE ASSY | NOZZLE VALVE ASSY | 1 | $16.09 | Available to order | 1 |
| 09 | 0800-011105 SEAT, BREATHER | SEAT, BREATHER | 1 | $6.89 | Available to order | 1 |
| 10 | 0800-011104 IDLE GEAR SHAFT, BREATHER | IDLE GEAR SHAFT, BREATHER | 1 | $11.49 | Available to order | 1 |
| 11 | 0180-332002-0010 FLANGE BOLT M8X12.5 | FLANGE BOLT M8X12.5 M8x12.5 | 6 | $1.25 | Available to order | 6 |
| 12 | 0010-023305 WASHER 8.5 | WASHER 8.5 8.5 | 6 | $3.44 | Available to order | 6 |
| 13 | 0JWA-011008 INNER PLATE OIL STRAINER | INNER PLATE OIL STRAINER | 1 | $3.44 | Available to order | 1 |
| 14 | 0010-021005 DOWEL PIN f 10x14 | DOWEL PIN f 10x14 10x14 | 6 | $1.25 | Available to order | 6 |
| 15 | 0010-090005-0010 BOLT M6x16 | BOLT M6x16 M6x16 | 6 | $1.25 | Available to order | 6 |
| 16 | 0800-011003 THRUST WASHER | THRUST WASHER | 1 | $17.24 | Available to order | 1 |
| 17 | 30122-040010850 SCREW | SCREW M4x10 | 6 | $3.44 | Out of Stock | Notify Me |
| 18 | 30499-01700 BEARING 6202 | BEARING 6202 6303C3@NTN | 1 | $45.99 | Available to order | 1 |
| 19 | 30400-01704 BEARING 6203 | BEARING 6203 17 | 1 | $34.49 | Available to order | 1 |
| 20 | 0JWA-011001-30000 GASKET, CRANKCASE | GASKET, CRANKCASE | 1 | $57.49 | Available to order | 1 |
| 21 | 0130-011109-0010 BOLT, M8X60 | BOLT, M8X60 M8x60 | 6 | $2.29 | Out of Stock | Notify Me |
| 22 | 0800-012400 OIL PRESSURE SWITCH | OIL PRESSURE SWITCH | 1 | $22.99 | Available to order | 1 |
| 23 | 0010-060010 WASHER 10 | WASHER 10 10 | 6 | $3.44 | Available to order | 6 |
| 24 | 0800-011013-00001 RESTRICTION PLUG | RESTRICTION PLUG | 1 | $1.14 | Available to order | 1 |
| 25 | 0180-014010 WIRE CLAMP | WIRE CLAMP | 6 | — | Obsolete | View Details |
| 26 | 0010-021019-0010 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $2.29 | Available to order | 6 |
| 27 | 0800-011006-00001 SCREW PLUG | SCREW PLUG | 1 | $2.29 | Available to order | 1 |
| 28 | 0JYA-014004 OIL DIPSTICK | OIL DIPSTICK | 1 | $11.49 | Obsolete | View Details |
| 29 | 0110-013030 O-RING 18x3.55 | O-RING 18x3.55 18x3.55 | 2 | $1.25 | Available to order | 2 |
| 30 | 0180-011006 WASHER 14 | WASHER 14 14 | 6 | $2.29 | Available to order | 6 |
| 31 | 0180-011007-0010 BOLT, M14X1.5X32 | BOLT, M14X1.5X32 M14x1.5x32 | 1 | $5.74 | Available to order | 1 |
| 32 | 0800-011300-0004 FILTER, ENGINE OIL | FILTER, ENGINE OIL | 1 | $17.24 | Available to order | 1 |
| 33 | 0130-011400 PLUG, SEAL | PLUG, SEAL | 1 | $2.29 | Available to order | 1 |
| 34 | 0130-011303 O-RING 14x1.4 | O-RING 14x1.4 | 2 | $2.29 | Available to order | 2 |
| 35 | 0040-012006-0010 BOLT M8x50 | BOLT M8x50 M8X50 | 6 | $2.29 | Available to order | 6 |
| 36 | 0800-011200 BREATHER ASSY | BREATHER ASSY | 1 | $34.49 | Available to order | 1 |
| 37 | 0800-011203-10000 OIL SEAL15x26x6 | OIL SEAL15x26x6 | 1 | $9.19 | Available to order | 1 |
| 38 | 0800-011201 GEAR, BREATHER | GEAR, BREATHER | 1 | $5.74 | Available to order | 1 |
| 39 | 30400-01003 BEARING 6200-RS | BEARING 6200-RS 10 | 1 | $8.04 | Available to order | 1 |
| 40 | 0800-011202 SHAFT, BREATHER | SHAFT, BREATHER | 1 | $9.19 | Available to order | 1 |
| 41 | 0800-011007 UPPER GUIDE, TIMING CHAIN | UPPER GUIDE, TIMING CHAIN | 1 | $6.89 | Available to order | 1 |
| 42 | 0030-011006-0010 BOLT, M6-105 | BOLT, M6-105 M6x105 | 6 | $2.29 | Available to order | 6 |
| 43 | 0010-021014 WASHER 12 | WASHER 12 12 | 6 | $1.25 | Available to order | 6 |
| 44 | 0180-011500 BOLT M12X1.5 | BOLT M12X1.5 M12x1.5 | 6 | — | Obsolete | View Details |
| 45 | 0800-011004 IDLE GEAR, BREATHER | IDLE GEAR, BREATHER | 1 | $20.69 | Available to order | 1 |
| 46 | 0800-011005 WASHER 10 | WASHER 10 10 | 6 | $2.29 | Available to order | 6 |
| 47 | 30801-01005 RETAINER 10 | RETAINER 10 10 | 6 | $2.29 | Available to order | 6 |
| 48 | 0JWA-011004-30000 GASKET, LEFT SIDE COVER | GASKET, LEFT SIDE COVER | 1 | $28.74 | Available to order | 1 |
| 49 | 0A70-011005-00001 BOLT M6x76 | BOLT M6x76 | 6 | $1.25 | Available to order | 6 |
| 50 | 0JWA-011009 OIL STRAINER | OIL STRAINER | 1 | $8.04 | Available to order | 1 |
| 51 | 0JWA-011003-10000 OUTER GASKET, STRAINER | OUTER GASKET, STRAINER | 1 | $2.29 | Available to order | 1 |
| 52 | 0JWA-011002 COVER PLATE, OIL STRAINER | COVER PLATE, OIL STRAINER | 1 | $9.19 | Available to order | 1 |
| 53 | 30017-060022110 BOLT | BOLT | 6 | $1.25 | Out of Stock | Notify Me |
| 54 | 30212-060810 CAP SHAPE NUT | CAP SHAPE NUT M6 | 6 | $2.29 | Available to order | 6 |
| 55-02 | 0800-011102-00011 PLAIN BEARING 1, Red | PLAIN BEARING 1, Red RED@THIN | 1 | $14.94 | Available to order | 1 |
| 55-01 | 0800-011102-00021 PLAIN BEARING 1, Blue | PLAIN BEARING 1, Blue BLUE@THICK | 1 | $14.94 | Available to order | 1 |
| 56-02 | 0800-011103-00011 PLAIN BEARING 2, Red | PLAIN BEARING 2, Red RED@THIN | 1 | $14.94 | Available to order | 1 |
| 56-01 | 0800-011103-00021 PLAIN BEARING 2, Blue | PLAIN BEARING 2, Blue BLUE@THICK | 1 | $14.94 | Available to order | 1 |
| 57-02 | 0800-0111A0-00001 MAIN PLAIN BEARING ASSY, Red | MAIN PLAIN BEARING ASSY, Red RED | 1 | $28.74 | Available to order | 1 |
| 57-01 | 0800-0111B0-00001 MAIN PLAIN BEARING ASSY, Blue | MAIN PLAIN BEARING ASSY, Blue BLUE | 1 | $28.74 | Available to order | 1 |
