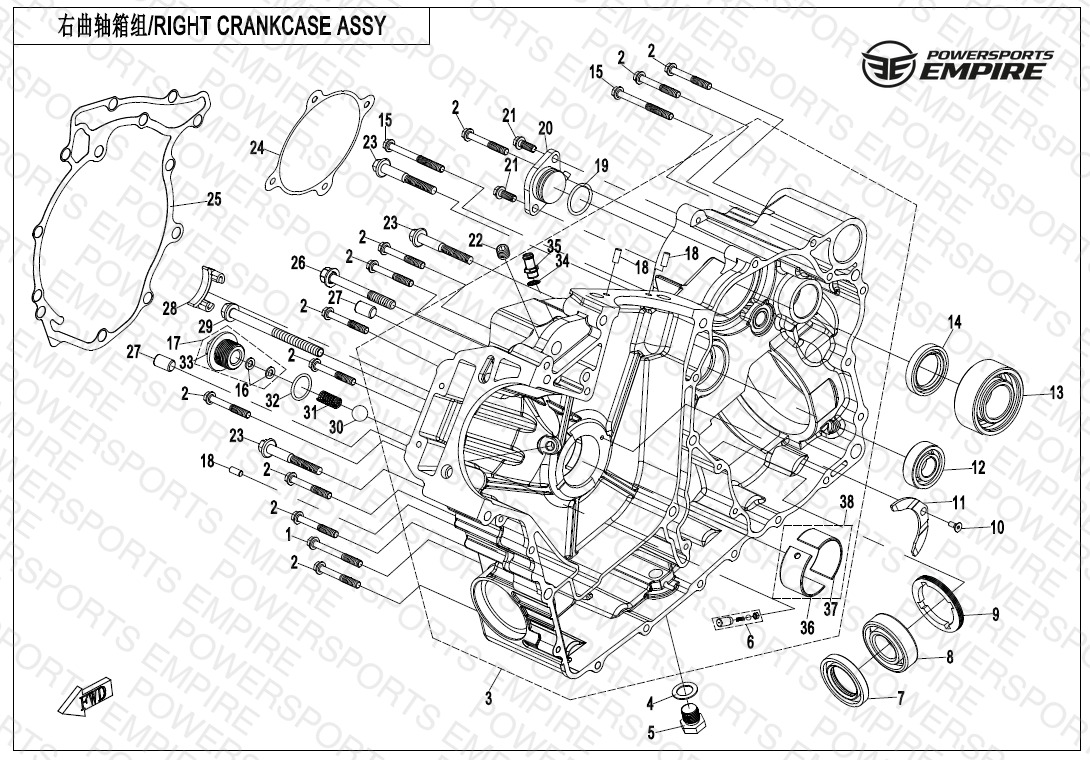

E01-2 — RIGHT CRANKCASE ASSY
Parts (41)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 0010-021018-0010 BOLT M6X55 | BOLT M6X55 M6x55 | 6 | $1.25 | Available to order | 6 |
| 02 | 0180-013208-0010 BOLT M6x45 | BOLT M6x45 M6x45 | 6 | $1.25 | Available to order | 6 |
| 03 | 0JWA-0121A1 RH CRANKCASE ASSY | RH CRANKCASE ASSY | 1 | $769.99 | Available to order | 1 |
| 04 | 0JWA-012003 GASKET, OIL DRAIN PLUG 14.1x22x1 | GASKET, OIL DRAIN PLUG 14.1x22x1 14.1x22x1 | 6 | $2.29 | Available to order | 6 |
| 05 | 0JWA-012200 OIL DRAIN PLUG | OIL DRAIN PLUG M14x1.5 | 6 | — | Obsolete | View Details |
| 06 | 0800-011400-00001 NOZZLE VALVE ASSY | NOZZLE VALVE ASSY | 1 | $16.09 | Available to order | 1 |
| 07 | 0010-011002 OIL SEAL, 25X40X8 | OIL SEAL, 25X40X8 25x40x8 | 1 | $11.49 | Available to order | 1 |
| 08 | 30400-02501 BALL BEARING 6025 | BALL BEARING 6025 25 | 1 | $19.54 | Available to order | 1 |
| 09 | 0JWA-012004 BEARING RETAINER | BEARING RETAINER | 1 | $19.54 | Available to order | 1 |
| 10 | 30122-040010850 SCREW | SCREW M4x10 | 6 | $3.44 | Out of Stock | Notify Me |
| 11 | 0800-011003 THRUST WASHER | THRUST WASHER | 1 | $17.24 | Available to order | 1 |
| 12 | 30400-01704 BEARING 6203 | BEARING 6203 17 | 1 | $34.49 | Available to order | 1 |
| 13 | 30499-03000 BEARING 3206A | BEARING 3206A 5206 | 1 | $120.99 | Available to order | 1 |
| 14 | 0180-012006-00001 OIL SEAL 30X45X8 | OIL SEAL 30X45X8 30X45X8 | 1 | — | Obsolete | View Details |
| 15 | 0A70-011005-00001 BOLT M6x76 | BOLT M6x76 | 6 | $1.25 | Available to order | 6 |
| 16 | 30304-050440 WASHER | WASHER | 6 | $1.14 | Available to order | 6 |
| 17 | 0GR0-0140A0 SCREW PLUG, RELIEF VALVE ASSY. | SCREW PLUG, RELIEF VALVE ASSY. | 1 | $5.74 | Available to order | 1 |
| 18 | 30406-00500 ROLLER PIN P 5x11.8 | ROLLER PIN P 5x11.8 P5x11.8 | 6 | $1.25 | Available to order | 6 |
| 19 | 0180-023002 O-RING 24x2.5 | O-RING 24x2.5 24x2.5 | 2 | $3.44 | Available to order | 2 |
| 20 | 0800-012200-20000 GEAR SENSOR | GEAR SENSOR KAIDI PLUG | 1 | — | Obsolete | View Details |
| 21 | 0010-090005-0010 BOLT M6x16 | BOLT M6x16 M6x16 | 6 | $1.25 | Available to order | 6 |
| 22 | 01A0-012010-00001 SCREW | SCREW | 1 | $1.25 | Available to order | 1 |
| 23 | 0130-011109-0010 BOLT, M8X60 | BOLT, M8X60 M8x60 | 6 | $2.29 | Out of Stock | Notify Me |
| 24 | 0JWA-012002 GASKET, CVT CASE SMALL | GASKET, CVT CASE SMALL | 1 | $6.89 | Available to order | 1 |
| 25 | 0JWA-012001 GASKET, CVT CASE | GASKET, CVT CASE | 1 | $12.64 | Available to order | 1 |
| 26 | 0700-012003-00002 BOLT M8x73 | BOLT M8x73 | 1 | $3.44 | Available to order | 1 |
| 27 | 0010-021005 DOWEL PIN f 10x14 | DOWEL PIN f 10x14 10x14 | 6 | $1.25 | Available to order | 6 |
| 28 | 0800-011007 UPPER GUIDE, TIMING CHAIN | UPPER GUIDE, TIMING CHAIN | 1 | $6.89 | Available to order | 1 |
| 29 | 0130-011115-00001 BOLT | BOLT | 1 | $4.59 | Available to order | 1 |
| 30 | 3120015 STEEL BALL | STEEL BALL | 1 | $1.14 | Available to order | 1 |
| 31 | 0700-012603-1000 SPRING,RELIEF VALVE | SPRING,RELIEF VALVE | 1 | $5.74 | Available to order | 1 |
| 32 | 0180-332004 O-RING 19x2.5 | O-RING 19x2.5 19x2.5 | 2 | $1.25 | Available to order | 2 |
| 33 | 0GR0-014003 SCREW PLUG,DECOMPRESSOR | SCREW PLUG,DECOMPRESSOR | 1 | $8.04 | Out of Stock | Notify Me |
| 34 | 0010-011008 O-RING, 15.8X2.4 | O-RING, 15.8X2.4 15.8x2.4 | 2 | $1.25 | Available to order | 2 |
| 35 | 0JWA-080009-00001 JOINT, WATER PUMP COVER | JOINT, WATER PUMP COVER | 1 | $5.74 | Available to order | 1 |
| 36-02 | 0800-011102-00011 PLAIN BEARING 1, Red | PLAIN BEARING 1, Red RED@THIN | 1 | $14.94 | Available to order | 1 |
| 36-01 | 0800-011102-00021 PLAIN BEARING 1, Blue | PLAIN BEARING 1, Blue BLUE@THICK | 1 | $14.94 | Available to order | 1 |
| 37-02 | 0800-011103-00011 PLAIN BEARING 2, Red | PLAIN BEARING 2, Red RED@THIN | 1 | $14.94 | Available to order | 1 |
| 37-01 | 0800-011103-00021 PLAIN BEARING 2, Blue | PLAIN BEARING 2, Blue BLUE@THICK | 1 | $14.94 | Available to order | 1 |
| 38-01 | 0800-0111A0-00001 MAIN PLAIN BEARING ASSY, Red | MAIN PLAIN BEARING ASSY, Red RED | 1 | $28.74 | Available to order | 1 |
| 38-02 | 0800-0111B0-00001 MAIN PLAIN BEARING ASSY, Blue | MAIN PLAIN BEARING ASSY, Blue BLUE | 1 | $28.74 | Available to order | 1 |
