2009 CF8 SNO PRO
Parts Diagrams
Showing OEM parts for your 2009 Arctic Cat CF8 SNO PRO
A-ARM ASSEMBLY
19 parts
AIR INTAKE ASSEMBLY
19 parts
AIR SILENCER ASSEMBLY
14 parts
BELLY PAN ASSEMBLY
37 parts
BELT GUARD ASSEMBLY
7 parts
CONSOLE AND SWITCH ASSEMBLY
7 parts

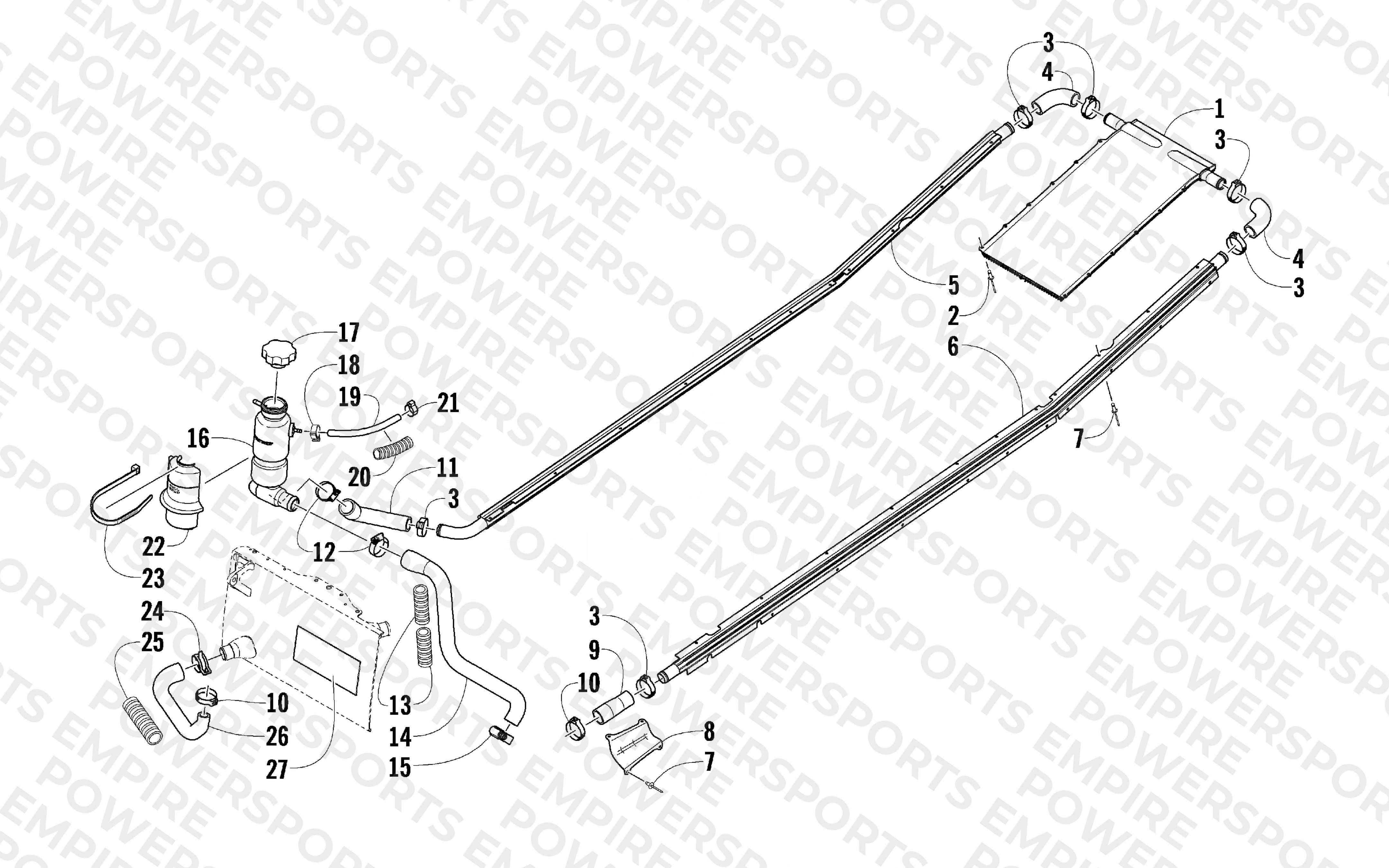

COOLING ASSEMBLY
28 parts
CRANKCASE ASSEMBLY
7 parts
CYLINDER AND HEAD ASSEMBLY
32 parts
DRIVE CLUTCH
13 parts

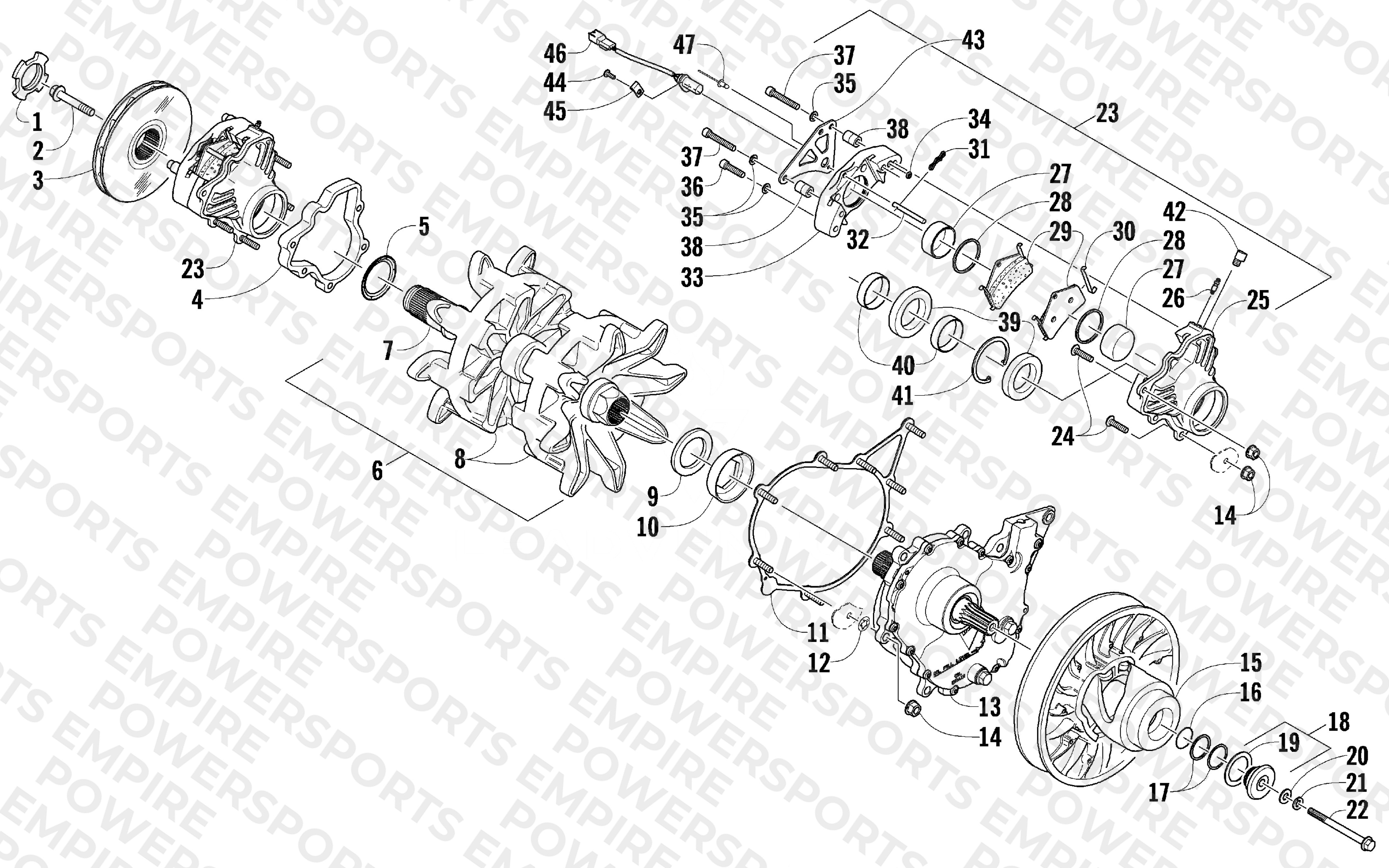

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES
47 parts
DRIVEN CLUTCH
14 parts
ELECTRICAL
12 parts
ENGINE AND RELATED PARTS
34 parts
EXHAUST ASSEMBLY
23 parts
FRONT FRAME AND FOOTREST ASSEMBLY
48 parts
FRONT SUSPENSION SHOCK ABSORBER
35 parts
FUEL PUMP ASSEMBLY
20 parts
GAS TANK ASSEMBLY
21 parts

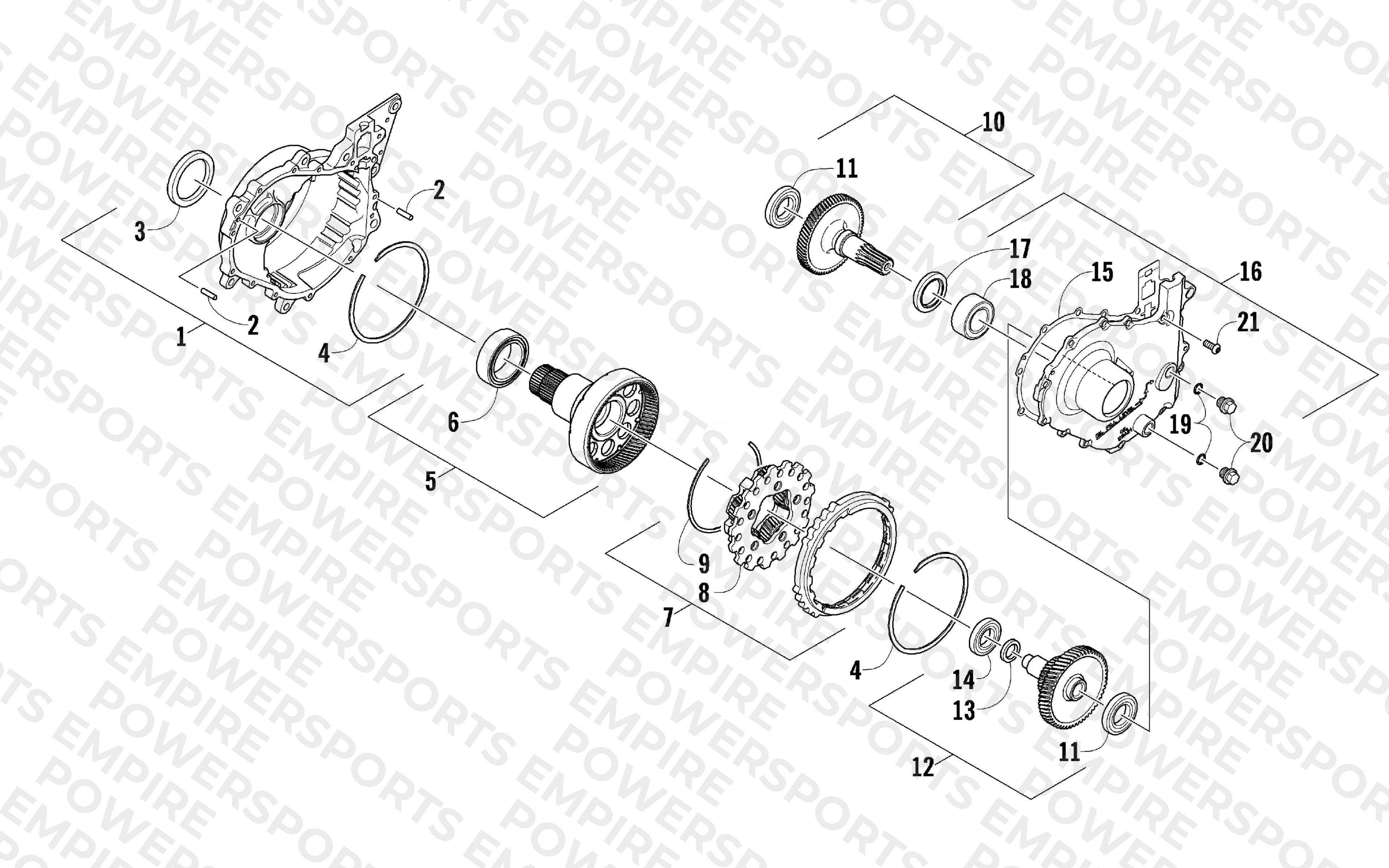

GEARCASE ASSEMBLY
23 parts

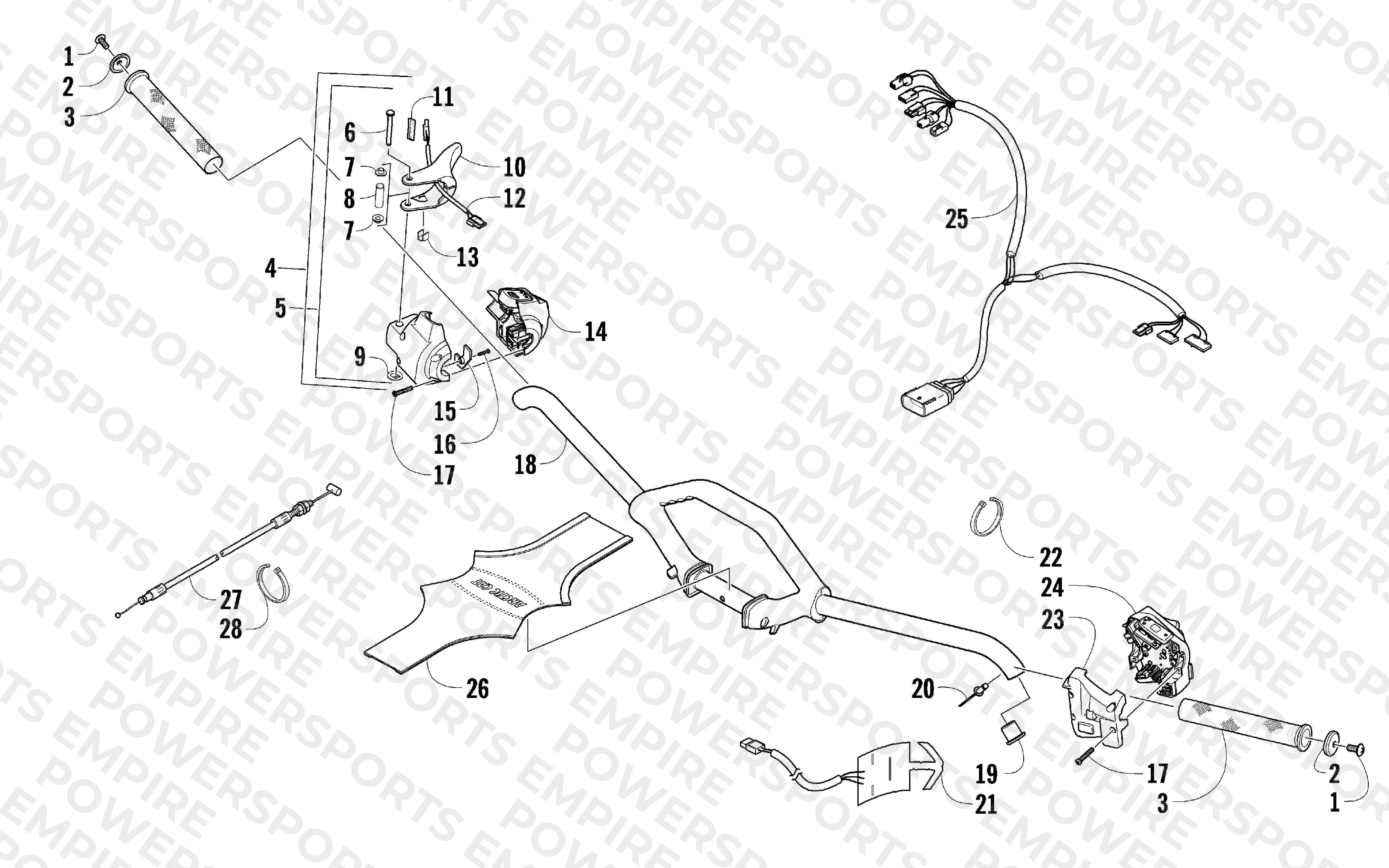

HANDLEBAR AND CONTROLS
26 parts

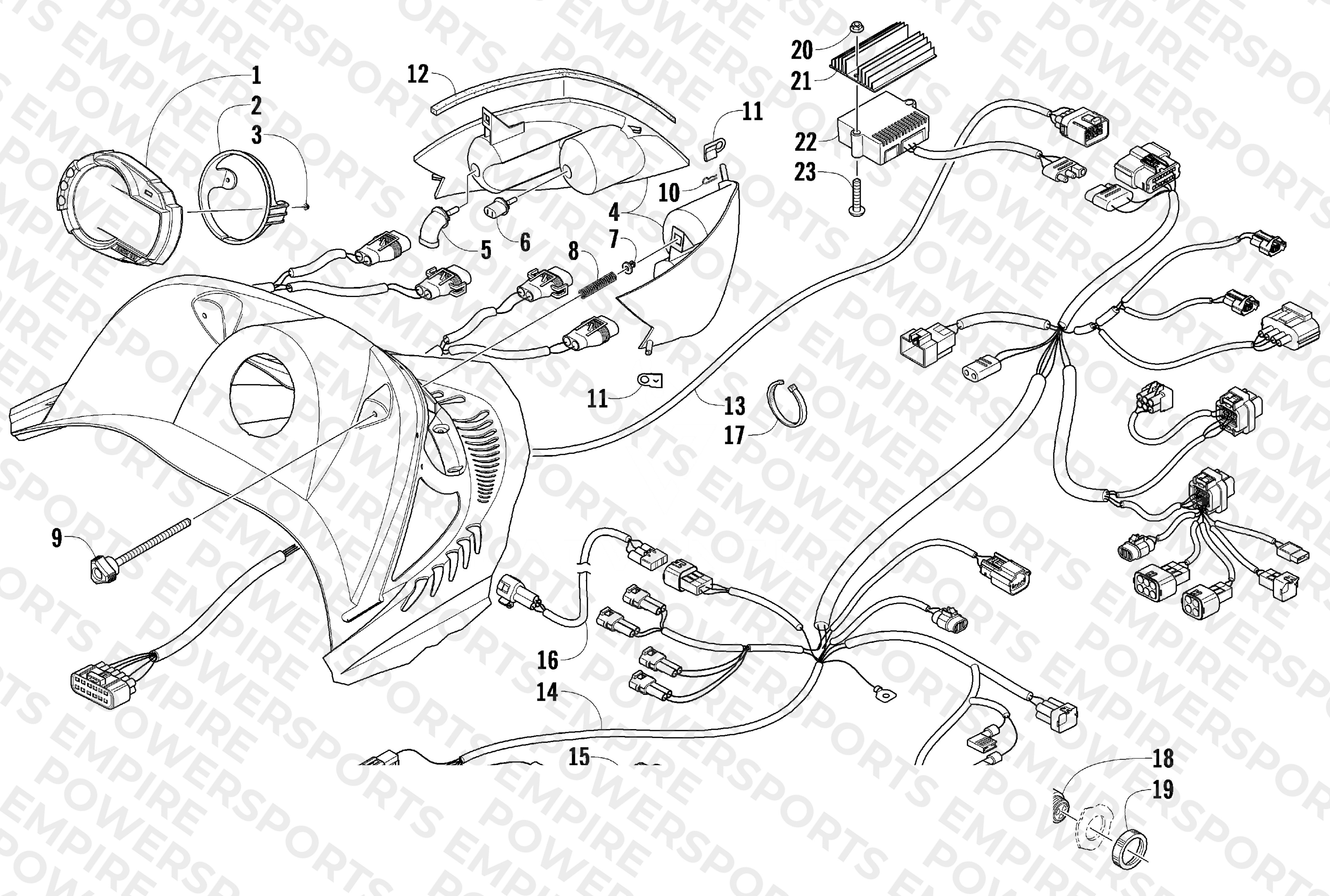

HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES
25 parts
HOOD AND WINDSHIELD ASSEMBLY
32 parts
IDLER WHEEL ASSEMBLY
41 parts
MAGNETO
15 parts
OIL PUMP
15 parts
OIL TANK ASSEMBLY
20 parts
PISTON AND CRANKSHAFT
29 parts

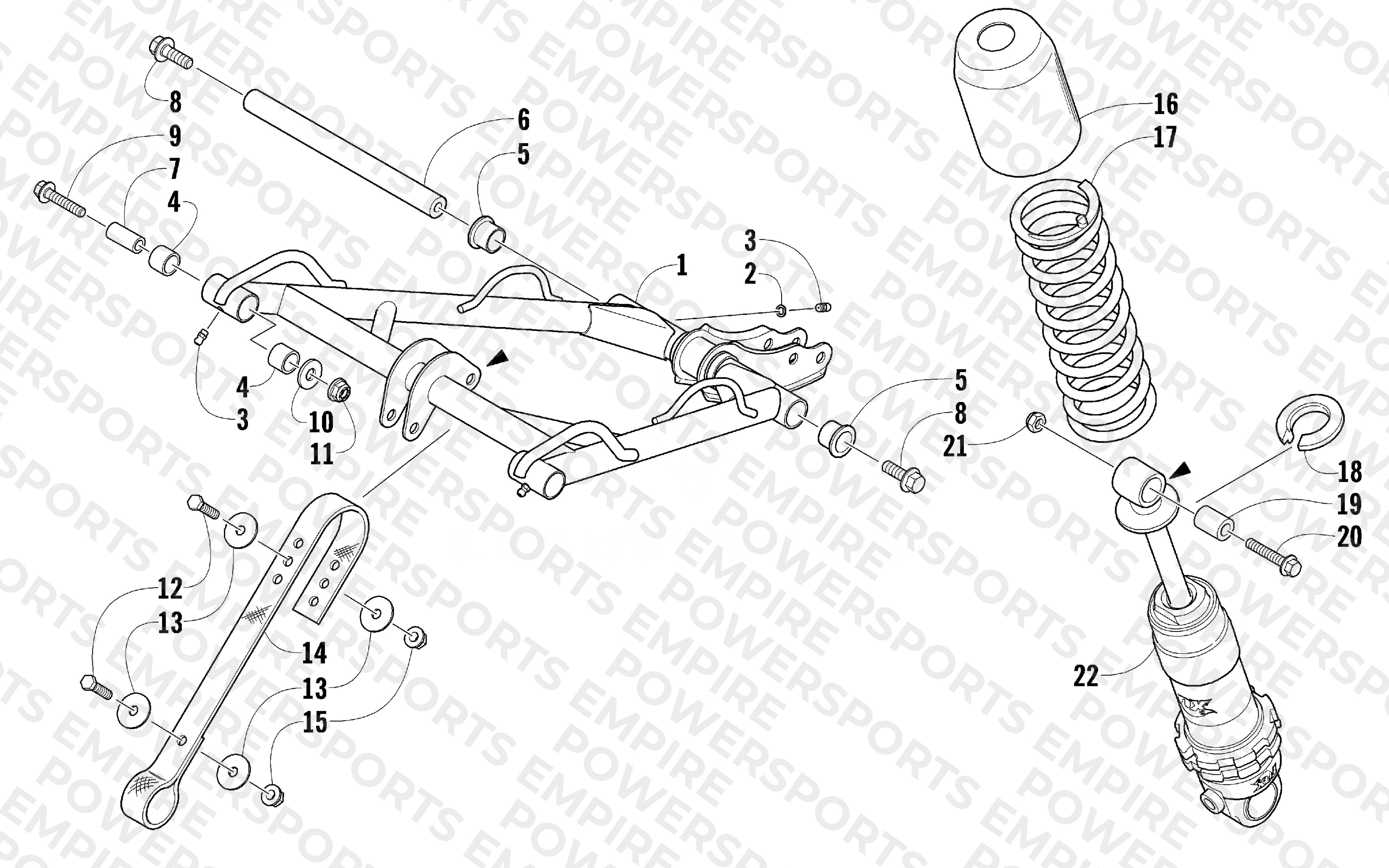

REAR SUSPENSION FRONT ARM ASSEMBLY
22 parts
REAR SUSPENSION FRONT ARM SHOCK ABSORBER
33 parts
REAR SUSPENSION REAR ARM ASSEMBLY
25 parts
REAR SUSPENSION REAR ARM SHOCK ABSORBER
31 parts
RECOIL STARTER
10 parts
REED VALVE ASSEMBLY
9 parts
SEAT ASSEMBLY
14 parts
SERVOMOTOR ASSEMBLY
2 parts
SHOCK ABSORBER AND SWAY BAR ASSEMBLY
15 parts
SKI AND SPINDLE ASSEMBLY
22 parts
SLIDE RAIL AND TRACK ASSEMBLY
24 parts
STEERING POST ASSEMBLY
35 parts
THROTTLE BODY ASSEMBLY
12 parts
TIE ROD ASSEMBLY
23 parts
TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
39 parts
WATER PUMP/WATER MANIFOLD
18 parts
